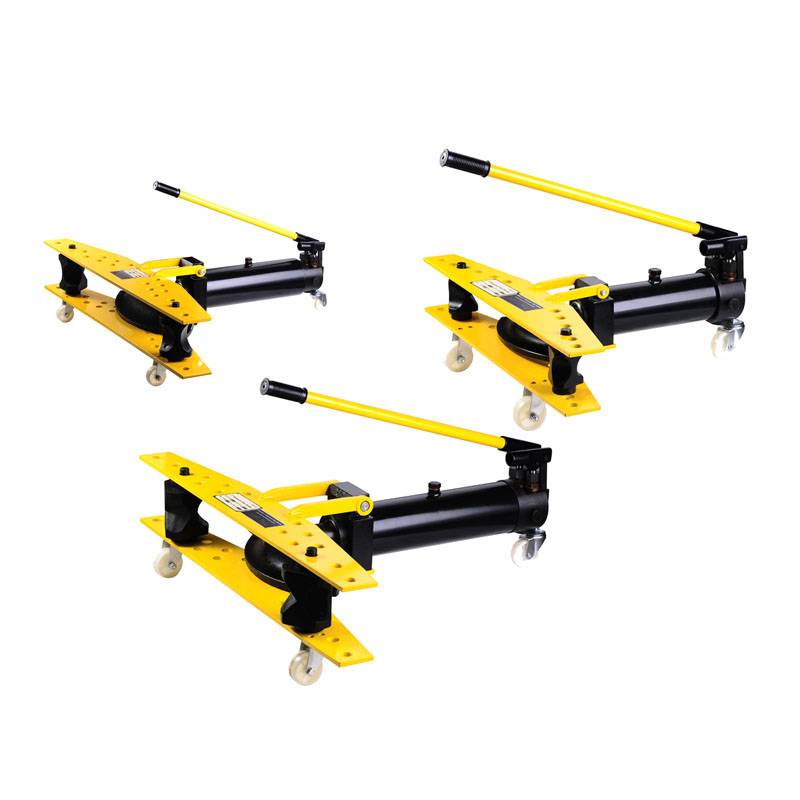

Hydraulic Manual Pipe Bender SWG-2A, SWG-3B, SWG-4D

Manual hydraulic pipe bender galvanized carbon steel pipe bender 3-inch hydraulic grip bender 90-degree circular pipe grip bender small hydraulic micro bender

Manual hydraulic pipe bender parameters:

Model: 2 "manual hydraulic pipe bender

Name: integral hydraulic pipe bender

Output: 16 t

Stroke: 240 mm

Pressing range: 1/2 "-2"

22 mm outside diameter: Φ - Φ 60 mm

Mold configuration: 1/2' 3/4' 1' 11/4' 11/2' 2'

Tube wall thickness: 2.75-4.5mm

Weight: 44.5 kg

Model: 3-inch manual hydraulic pipe bender

Name: integral hydraulic pipe bender

Output: 18 t

Stroke: 320 mm

Pressing range: 1/2 "-3"

Outer diameter: 22 mm - 89 mm Φ Φ

Mold configuration: 1/2' 3/4' 1' 11/4' 11/2' 2' 21/2' 3'

Tube wall thickness: 2.75-4.5mm

Weight: 91 kg

Manual hydraulic pipe bender:

Tighten the switch of manual hydraulic pipe bender, and lubricate the contact parts of supporting wheel and mold with bent workpiece.

2, according to the size of the bending pipe, select the corresponding bending die, installed on the top of the piston rod, the two supporting wheels corresponding size groove facing the bending die, pay special attention to the supporting wheel should be placed in the wing side of the corresponding size hole, "zui large size outside hole.And so on.Avoid the position asymmetry of the two supporting wheels and damage the mold and parts.

3. Cover the upper wing plate after placing the workpiece, press the bending mould to the work piece with fast pump first, and then press the workpiece to the required Angle with slow pump. After bending, open and close, the working piston will automatically reset, turn over the upper wing plate, and take out the workpiece.
