Split Pressing Tool CO-200S

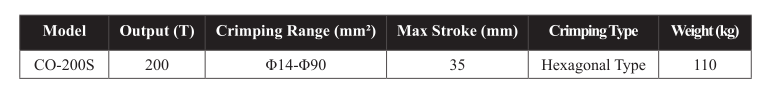

Model:CO-200S
♦ CO-200S is designed for crimping 500 KV or above overhead tension sleeve and 220KV underground cable crimping.
♦ Max sleeve size diameter is 90mm². This tool has wide crimping range and less crimping times which could reduce crimping distortion and control elongation.
♦ Duel active hydraulic cylinder could prevent spring from elastic fatigue and avoid trouble of slow reset
♦ Reset hydraulic cylinder could shorten piston reset time.
♦ Moveable dies could assist operator taking out dies after crimping.
♦ Rotating die cover could be open and close quickly to make operation and position much easier.
♦ Simple design for easy maintenance.
♦ Only work with matched double acting hydraulic electric pump such as HHB-700AB or DB075-D2, or gasoline hydraulic pump ZHH700R.
