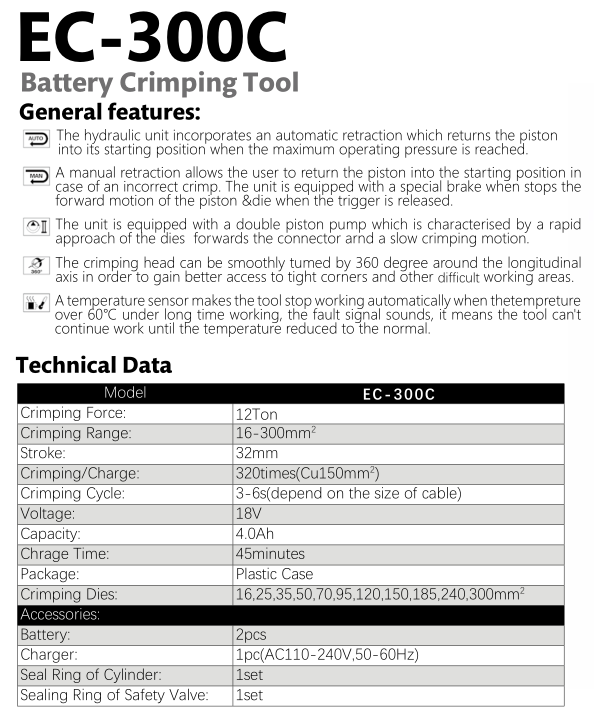

Battery Crimping Tool EC-300C

Battery Crimping Tool
Model:EC-300C

♦ Micro computer control system-automatically detects the pressure when in camping with double safety protect.

♦ The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

♦ If a deviation from the set operation pressure or low battery charges is Identified, an acoustic signal sounds and a red display flashes.

♦ One key control- press the trigger to start working ha loosing the trigger means stop forcing pressure, loosing fully means piston retum to the original position.

♦ A Temperature sensor makes the tool stop working automatically when the temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until the temperature reduced to the normal.
