Battery Crimping Tool EY-6017
Battery Crimping Tool EY-6017-1 Battery Crimping Tool EY-6017-2Battery Crimping Tool EY-6017-3

Battery Crimping Tool EY-6017

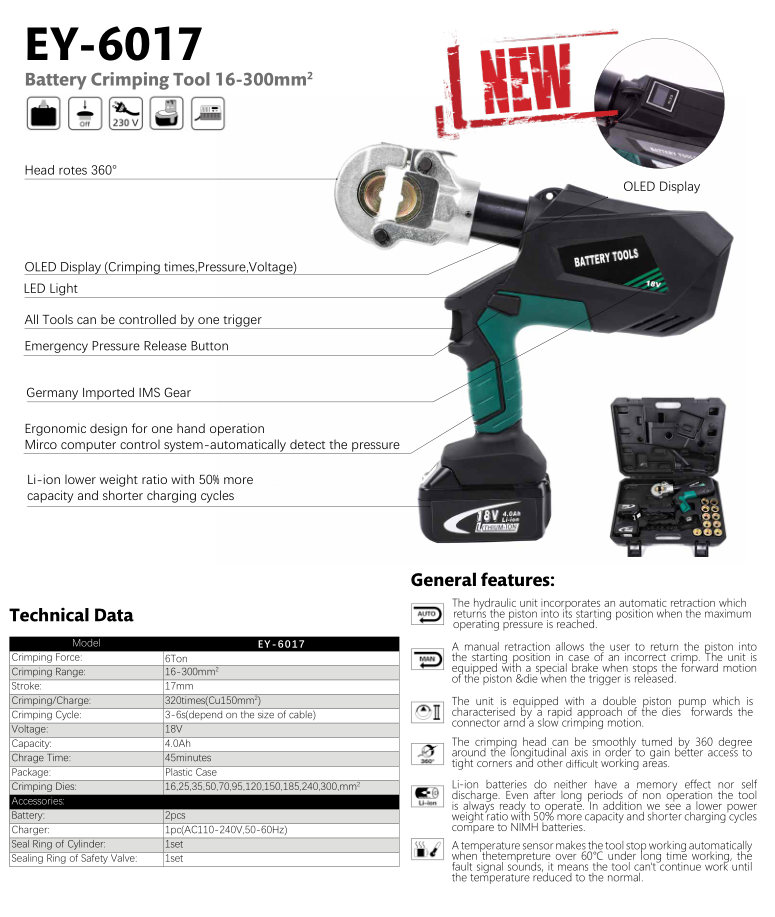

Battery Crimping Tool 16-400mm²
Model:EY-6017
♦ Micro computer control system-automatically detects the pressure when in camping with double safety protect.
♦ The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
♦ If a deviation from the set operation pressure or low battery charges is Identified, an acoustic signal sounds and a red display flashes.
♦ One key control- press the trigger to start working ha loosing the trigger means stop forcing pressure, loosing fully means piston retum to the original position.
♦ A Temperature sensor makes the tool stop working automatically when the temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until the temperature reduced to the normal.

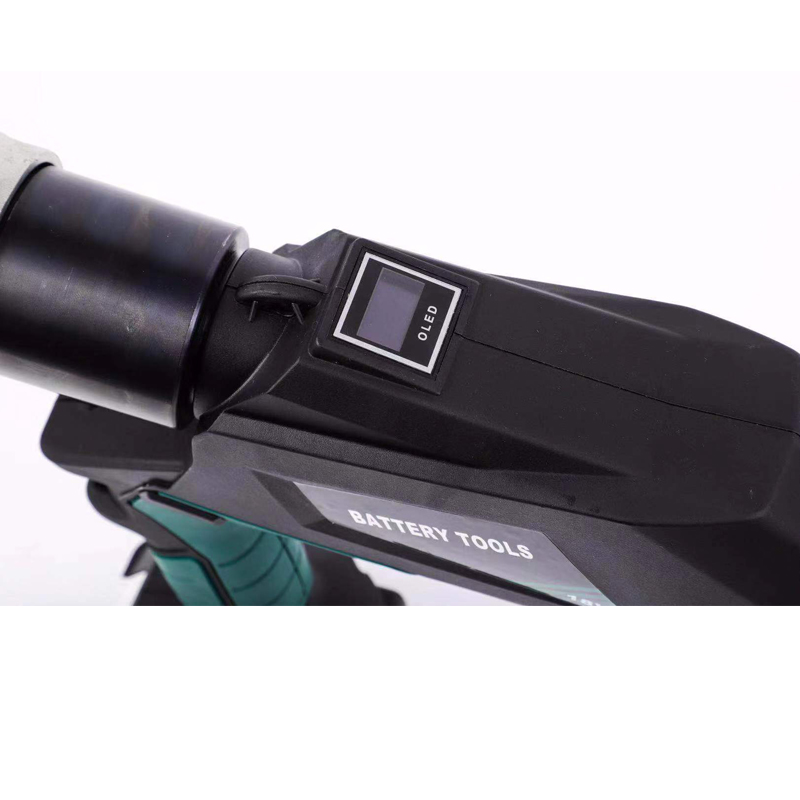

♦ OLED Display(crimping times,pressure,voltage)
